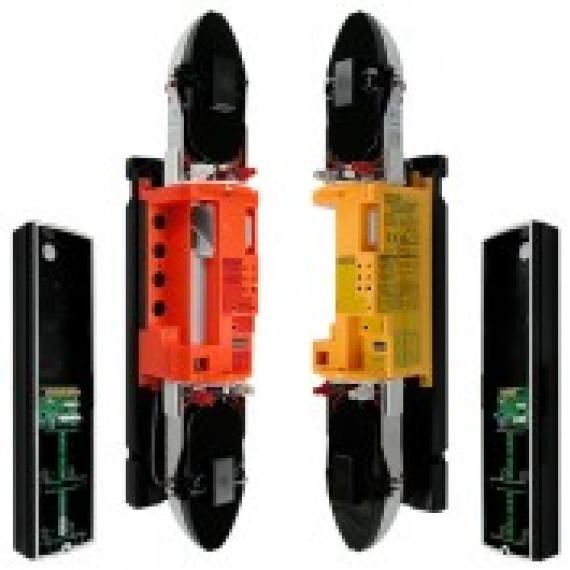

TXF-125E-KH, 100m Battery Powered Quad Beam (excl. Batteries) For TA Towers

Model: TXF-125E-KH
Trade Only

TXF-125E-KH, 100m Battery Powered Quad Beam (excl. Batteries) For TA Towers

Model: TXF-125E-KH
Trade Only
Product Description

Takex (TXF-125E-KH) Battery-Powered External Quad Beam, Up to 100m Between Beam Tx and Rx (4-Channel) For Use In Beam Towers Only- Supplied With 'PTKH' Tower Fixing Bracket (Not Pole Clamps)

The TXF-125E-KH is a battery operated quad photoelectric beam sensor for use in TA series Beam Towers, designed for compatibility with leading wireless systems; reducing the time and cost of permanent installations and allowing the use of Active Infrared Beams on rapid deployment or temporary installations.

With 4 selectable frequencies, multiple beam sets can be used in both linear and stacked configurations without risk of crosstalk, further assisted by a transmitter power function that allows the user to set 25/50/75/100m zones.

Two 3.6V (17Ah) batteries can power each unit for approximately 5 years of service, and ±90° horizontal/±20° vertical adjustable optics cater for the most dynamic of terrains.

Features:

  • Specifically designed for use in TA series Tower Enclosures
  • 4 x synchronised high power beams
  • 4 selectable operation ranges 25/50/75/100m
  • 4 selectable beam channels to prevent crosstalk
  • up to 5 year battery life using 2 x LS 3360 Deg. (3.6V 17Ah) batteries per unit
  • increased beam separation minimises nuisance alarms
  • vivid internal colour aids beam alignment procedure
  • ±90° horizontal ±20° vertical adjustable sensor heads
  • environmental monitoring circuit

Specifications:

Model TXF-125E-KH
Detection system Near infrared pulsed beam interruption system
(TR-RE 4 beam simultaneous interruption)
Infrared beam Single modulation pulsed beam by LED (near infrared beam light-emitting diode)
Protection distance Outdoor 330ft (100m) or less
Beam power setting 330ft (100m) / 245ft (75m) / 165ft (50m) / 82ft (25m)
Max. arrival distance 10 times
3,300ft (1000m)
Response time 0.05 sec, 0.10 sec, 0.25 sec, 0.5 sec
Modulated beam frequency selection 4-channels
Power supply voltage 3.6VDC (recommended battery: SAFT lithium thionyl chloride battery LS33600)
Current consumption 750μA
Transmitter: Approx. 430μA (during protection)
Receiver: Approx. 320μA (during protection)
(normal temperature, 3.6V DC)
Battery life Transmitter: Up to 5 years* (2 batteries)
Receiver: Up to 5 years* (2 batteries)
*Approximate, not guaranteed
ALARM OUTPUT
(Receiver only)
Dry contact relay output form C
30V DC 0.1A (resistive load)
ENVIRONMENT OUTPUT
(Receiver only)
Dry contact relay output form C
30V DC 0.1A (resistive load)
LOW BATTERY OUTPUT
(Transmitter and Receiver)
Dry contact relay (N.C.)
30V DC 0.1A (resistive load)
POWER OUTPUT
(Transmitter and Receiver)
3.0V DC 50mA MAX
Beam adjustment Horizontal: ±90°, Vertical: ±20°
Alarm LED Red LED (Receiver) ON: when an alarm is initiated
Attenuation LED Red LED (Receiver) ON: when an alarm is initiated
Ambient temperature range -10°C to +50°C (14°F to 122°F)
Functions Sound check
Monitor jack
Upper/lower beam switch
Low battery indication
Wireless alignment checker connection
Battery saving
Repeat output
Battery sharing
Mounting position Outdoor, Indoor
Weight Transmitter: Sensor Unit 17.5oz (500g) ,Base 21.7oz (620g) excluding batteries
Receiver: Sensor Unit 17.5oz (550g) ,Base 21.7oz (620g) excluding batteries
Appearance Sensor unit: PC/ABS resin, Base: ASA resin Black

APPLICATIONS: A battery-powered beam (batteries not included, order separately as above; also widely available on Internet etc) for wireless applications, hard-to-cable-to areas or sites with no mains power. Use with 'any make' wireless transmitter or GSM dialler etc for remote signalling (not supplied) to create temporary or permanent secure systems. Call Takex for application and system design advice.
