2815, Wiegand to RS485 Converter

Model: 2815
Trade Only

2815, Wiegand to RS485 Converter

Model: 2815
Trade Only
Product Description

2815, Wiegand to RS485 Converter

The Art.2815 is a wiegand to RS485 converter, it allows the connection of 3rd party wiegand
proximity readers and keypads to an RS485 bus.

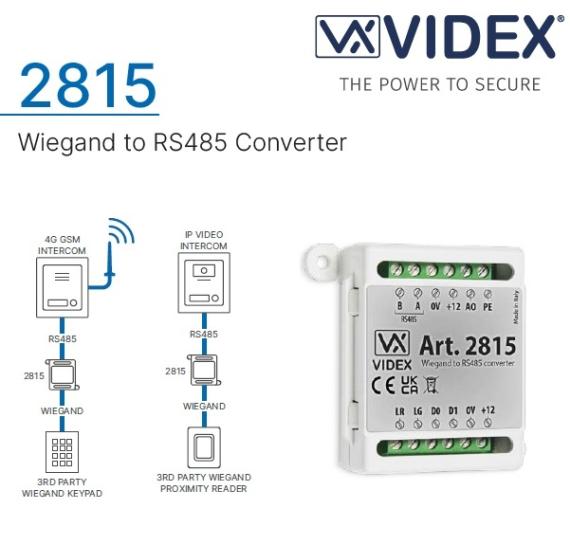

The converter is compatible with VIDEX’s 4G GSM intercom modules (excl. Art.150/4G) and
VIDEX’s IP system devices (as shown in figure)

It can also be used to integrate an ANPR camera (via the wiegand connection) to the 4G GSM system which can be managed by the GSM PC software, the GSM cloud with the “over the air” feature, or the GSM SMS Wizard mobile app

The converter has a single switched 0V auxiliary output AO that can be used to trigger a relay and can be activated either via the RS485 bus or via the switched 0V PE input.

It is also networkable with VIDEX’s RS485 remote relay the Art.2813 and when set with the same device ID will operate the remote relay.

Programming is via the internal dip-switches to select the wiegand protocol and device type (proximity reader or keypad), device ID setup (ID.0 - ID.15), auxiliary output AO time (1 - 15
secs or 0 for latch mode) and keypad access code length (any length or fixed 4-8 digits).

  • RS485 bus connectivity.
  • Connect 3rd party wiegand proximity readers and keypads.
  • ANPR camera integration with VIDEX’s 4G GSM system.
  • Switched 0V auxiliary output AO.
  • Switched 0V PE input to activate AO.
  • Programmable AO activation time with latch mode.
  • Connection to VIDEX’s 4G GSM intercom modules and IP system devices via RS485.

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.

Name Download
Datasheet for 2815, Wiegand to RS485 Converter? Download
