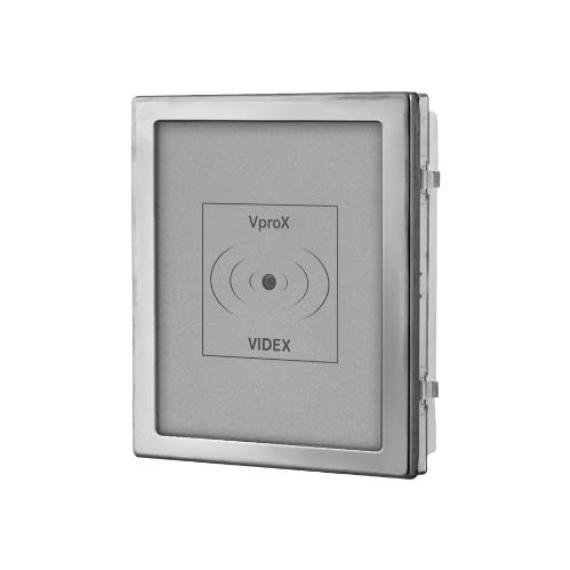

4850R/M, 4000 Series Proximity reader module for the GSM intercom

Model: 4850R/M
Trade Only

4850R/M, 4000 Series Proximity reader module for the GSM intercom

Model: 4850R/M
Trade Only
Product Description

videx, 4850R/M, Proximity Reader Module for the GSM Intercom 4000 Series

A selection of 4000 series codelock modules and proximity access control modules that are able to operate as standalone units or can be incorporated as part of an audio or video door entry system.

The 4901 and 4902 codelock modules are completely standalone while the 4903 can operate as a standalone codelock or be networked to the GSMPRO audio module via RS485 bus.  The 4901 codelock has 3 relays and allows for 3 codes (1 code per relay) while the 4902 codelock has 2 relays and allows for up to 1000 codes that can be assignedto one or both of the relays. The 4903 has 2 relays and allows for 2 codes (1 code per relay) when in standalone mode, however when connected via the RS485 bus to the GSMPRO audio module access codes can be expanded up to 400 permanent codes or 32 temporary codes that can be assigned to one or both of the relays. The keypads have dry relay contacts (CO, NO and NC) where each output can be programmed from 1-99 seconds or 00 for latching. They also feature two switched 0V push to exit inputs to activate relays 1 and 2 respectively. Codes can be between 4-8 digits in length and each keypad module incorporates blue backlit key buttons.

The 4850 is a standalone proximity module where programming is carried out at the reader using simple programming tactile buttons and LED’s on the rear of the module. Up to 99 cards (955/C) or fobs (955/T) can be programmed. The 4850R is an expansion proximity reader that can be linked to the GSMPRO audio module via RS485 bus. Both proximity readers include a dry contact relay output (CO, NO and NC) which can be programmed from 1-99 seconds or 00 latching and also includes a single switched 0V push to exit input. A 4949 reader is also available for the VProx series of proximity controllers ranging from the VP20, VP100, VP250, VP1000 and VP4000 cpu’s.

Key Features:

  • Coded access and proximity access modules for the 4000 modular series
  • Available in matt finish 316 marine grade stainless steel or mirror finish stainless steel
  • Blue backlit button codelock modules
  • Standalone codelock modules
  • Networkable RS485 codelock module for the GSMPRO intercom
  • Standalone proximity modules
  • Networkable RS485 proximity module for the GSMPRO intercom
  • Proximity reader module for the VProx system
  • Wiegand 26bit proximity reader for the standalone SC24000 controller and Portal Plus system
  • Standalone Mifare proximity reader for the MiAccess system

Technical Specification:

  • Number of relays: 1x CO, NO & NC dry contacts (24Vac/dc @ 3A max)
  • PTE Inputs: 1x switched 0V input
  • Power: 12-24Vac or dc (150mA max)
  • Programmable relay times: 1 to 99 seconds or 00 for latching
  • Status LED indication: Tri state LED and sounder
  • Compatible cards and fobs: 955/C (cards), 955/T (fobs)
  • RS485 bus connection: Yes (2x A, 2x B and GND)

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training

.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training

Name Download
Datasheet for 4850R/M, 4000 Series Proximity reader module for the GSM intercom Download
