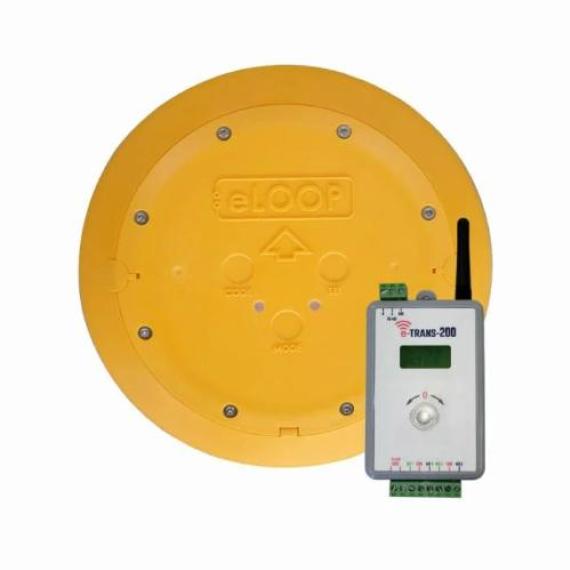

AES (ELOOC-RAD-KLT) E-Loop Commercial Radar Loop kit PRESENCE MODE with LCD Transceiver

Model: ELOOC-RAD-KLT
Trade Only

AES (ELOOC-RAD-KLT) E-Loop Commercial Radar Loop kit PRESENCE MODE with LCD Transceiver

Model: ELOOC-RAD-KLT
Trade Only
Product Description

AES (ELOOC-RAD-KLT) E-Loop Commercial Radar Loop kit PRESENCE MODE with LCD Transceiver

The Commercial Wireless Vehicle Detection System uses magnetometer sensors to detect the presence of oncoming vehicles. These detections are transmitted to a nearby transceiver for gate activation. After the vehicle is detected, the e-loop will switch to radar mode. The sensors are installed on the surface of entry or exit passages using concrete fixing bolts, contain four replaceable Lithium batteries, and can withstand almost any vehicle.

The Radar sensors can detect vehicles that are stopped above the e-loop. The added radar utilises a two-way radio communication protocol for reliable operation. Once the magnetometer sensor detects an oncoming vehicle, the transceiver relay will be latched and confirmation will be sent back to the e-loop. If the magnetic field drops below the set threshold, the radar will check if a vehicle is present. If no vehicle is detected, an unlatch command is sent to the relay, and the transceiver will send a confirmation to the e-loop. If the confirmation is missed, multiple attempts will be made to ensure a safe operation. Radar settings can be adjusted using the e-diagnostics remote. Settings that can be changed include; Dead zone, sensor distance, sensitivity, magnetic field release level, and confirmation mode.

Note: Gate or door controller must have a dedicated open input and auto close function enabled.

Both e-loop models are available in two modes: PRESENCE MODE WITH ADDED RADAR PROTECTION OR EXIT MODE.

This Kit Includes:

  • 1 x e-Loop Presence mode
  • 1 x e-Trans 200 (transceiver)
  • 2 x Concrete fixing bolts
  • 1 x Magnet

Key Features:

  • Compact design
  • Fast and easy installation (quick non-permanent installation)
  • Not effected by ground movement
  • Range up to 50 metres/yards
  • Presence Mode
  • Commercial E-loop Surface Mounted
  • Compatible with various gates
  • Reliable radio communications with transceiver
  • Lower power consumption: 3-axis magnetometer for vehicle detection

Technical Specifications:

  • 8 Hz sampling rate
  • Auto-calibration
  • Exit/Entry detection mode
  • Dual sensing technology. (EL00C-RAD only).
  • 10600 mA battery (included) giving up to 6-10 years battery life (depending on mode).
  • Made of high-impact plastic (10 tonne static load limit)
  • High security 128-bit encryption
  • IP rating: IP68

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
