Eaton (BT1S-CCGS) BeamTech 1x400lm CG-S

Model: BT1S-CCGS
Trade Only

Eaton (BT1S-CCGS) BeamTech 1x400lm CG-S

Model: BT1S-CCGS
Trade Only
Product Description

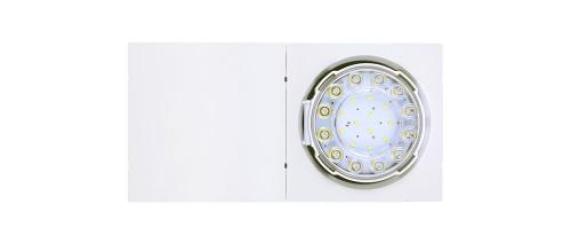

Eaton, BT1S-CCGS, BeamTech CG-S, 1 x 400 lm, IP65

BeamTech CG-S is a central battery emergency lighting beam light with one or two high-intensity light heads. It provides a flexible solution for both wide-area anti-panic lighting and narrow illumination of escape routes or to highlight safety equipment like fire extinguishers in accordance to EN1838.

It is designed as an aesthetic alternative to traditional emergency beam light solutions, making it a good choice for public areas. While its IP65 ingress protection and IK07 impact resistance also make it well equipped for industrial applications such as factories or warehouses.

Key Features:

  • LED safety luminaire with high ingress protection class (IP65) with one or two adjustable light heads with 400 lm each
  • Light heads are rotatable in two axes in 15° steps and are equipped with a locking mechanism preventing an accidental change of light head configuration
  • Narrow or wide beam option can be configured individually per light head via jumper switches
  • For better aesthetics of the product, the two IP65 cable glands are integrated in the power supply unit so that they are invisible after installation
  • One product applicable for escape route illumination, open area illumination or for illuminating points of emphasis in accordance with EN 1838
  • Narrow beam option enables escape illumination from up to 30 m height and gives a maximum spacing between luminaires up to 29 m (with 2 light heads)
  • Wide beam option for wide area lighting with up to 16 m height and up to 20 m spacing (with 2 light heads)
  • Shortened inspection effort due to CEWA GUARD technology
  • Automatic function monitoring for up to 20 luminaires per circuit
  • Reduced installation cost through STAR Technology
  • Freely programmable mixed operation, allowing the switching of luminaire modes within one circuit

Specifications:

  • Luminous flux ΦN: BT1S-CCGS: 1 x 400 lm
  • Luminous flux ΦE/ΦN at end of rated operating time: 100%
  • Housing material: Polycarbonate (850 °C glow wire resistant)
  • Housing color: RAL 9003
  • Weight BT1S-CCGS: 0.75 kg
  • Type of mounting: Wall or ceiling surface mounting, recessed with optional base
  • Protection category: IP65
  • Insulation class: II
  • Mechanical impact resistance: IK07
  • Supply terminals: 3 x 2 x 2.5 mm2 (max. 2 A)
  • Power input: 220 - 240 V AC, 50/60 Hz // 176-275 V DC
  • Current consumption - battery operation (220 V) BT1S-CCGS: 20 mA
  • Power consumption mains operation (apparent power/effective power) BT1S-CCGS: 7.5 VA / 4.4W
  • Inrush current BT1S-CCGS: 1.1 A
  • Permissible ambient temperature: 20 °C to +40 °C
  • Light source: 1 (2) x 12 LEDs Wide / 1 (2) x 12 LEDs Narrow
