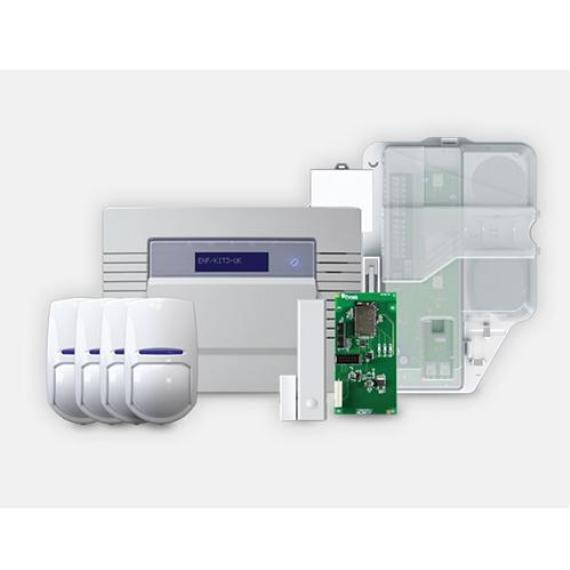

Pyronix (ENF/KIT3-UK) Enforcer Kit 3 with DIGI-WIFI as Standard

Kit Includes:

• 1x ENF32UK-WE
• 4x KX10DP-WE
• 1x MC1MINI-WE
• 1x DELTAMOD-WE
• 1x DIGI-WIFI

 Product Features:

• DIGI-WIFI as standard
• New Partcode: ENF/KIT3-UK
• HD monitoring
• Android & Apple compatible
• Highly secure connection
• No on-site IT configuration
• Recurring revenue & retention
• Complete control from anywhere in the world

Panel Type: Domestic & Commercial

FEATURES:

Keeping you ahead of the curve with DIGI WIFI included as standard

PSTN and traditional phone lines continue to develop issues since the move to digital, while IP communications and push notifications with smart apps go from strength to strength. So, a DIGI-WIFI module* is supplied for free, as standard, with the Enforcer V10 to deliver PyronixCloud and HomeControl+ connectivity and all the benefits they provide.*

Safe on the go control & monitoring with the HomeControl+ App & PyronixCloud

• Complete control from anywhere in the world
  Set and unset the system, get system status and receive custom push notifications from any event.
• HD monitoring
  Add IP cameras to the system for live stream monitoring of the property.
• Android & Apple compatible
  The HomeControl+ App is available in two versions: on Android™ from the Google Play Store, and on iOS™ from the Apple App store.
• Highly secure connection
  The HomeControl+ App and PyronixCloud communications are encrypted to the highest standard.
• No on-site IT configuration
  The Enforcer V10 and EURO 46 APP are connected through a cloud sever, so there is no need to set up static IP addresses or configure the network connection on site, instead you simply set up an account on PyronixCloud.com.
• Recurring revenue & retention
  Streams of recurring revenue can be established by offering PyronixCloud management services; managing this or passing access to users. This increases customer retention and makes the system more profitable.

Connect as required with the complete compatibility with all communication options

Whatever the communication need, the Enforcer V10 gives you the option. Simply purchase the option you want and fit it into the panel. Loud & obvious alarms with local sounder & LEDs.

Get to know one & master them all, with fully menu-driven programming

Easily navigate through the menus of the Enforcer V10 or EURO control panels with the same uniformed menu-driven programming. Simple ‘YES/NO’ questions allow fast and efficient installing to save both time and money.

(ENF32UK-WE) Enforcer HomeControl+ Panel

The brand new Enforcer HomeControl+ system delivers the security benefits of the multi-award winning two-way wireless Enforcer technology, as well as access and control of your home from anywhere in the world via your smart device.

With the release of the new 2.1 software you now get even more features.

CSL DigiAir Pyronix (available through CSL)
With V2.1, there is now the ability to add CSL ARC communication, which would allow for third party response capability to provide direct action of any disturbances.

This feature would be particularly advantageous should a user incur a disturbance when they are not in a position to receive a notification or take any action themselves.

Wireless Arming Station compatibility
Delivers maximum usability and convenience for both the installer and end user alike, the wireless keypad is both easily installed and a practical choice for an additional keypad in your property.

Up to 64 wireless zones with the EURO ZEM32-WE
You can now add up to 64 wireless peripherals your system by adding a EURO ZEM32-WE. This makes the whole system even more flexible and capable for larger installations.

Through the PyronixCloud and HomeControl+ App IP infrastructure, your smart phone can literally act as a portable keypad to allow you to receive customisable notifications, set and unset areas with easy padlock icons, check the status of every sensor on your system and open your garage, close a blind or turn on and off various appliances with simple switches.

Additionally, the introduction of 720p HD IP external and internal cameras to the HomeControl+ range provides the ability to add live video monitoring to your system. This means that now, rather than simply securing your home or commercial building, you can do that while checking on an elderly relative who perhaps lives on their own, checking on your property when the alarm is activated or checking that your children have arrived home safely from school.

The Pyronix HomeControl+ App is available in two versions: On Android™ from the Google Play Store, and on iOS™ from the Apple App store.

All the benefits of the Enforcer two way wireless technology now with an app.

No on site IT configuration
The Enforcer HomeControl+ App is connected through a cloud sever with 3 way verification, so there is no need to set up static IP addresses or configure the network connection on site. Instead you simply set up an account on PyronixCloud.com

Highly secure connection
The HomeControl+ App and PyronixCloud communications are fully encrypted to the highest standard and no sensitive user data is stored on the PyronixCloud.

Independent areas
The introduction of independent areas enables easier control of outbuildings, garages and sheds, allowing end users to unset areas of the system in isolation, without having to unset the system as a whole.

Key Features:

• Control your security system from anywhere in the world
• Get notifications & system status' from the palm of your hand
• Highly secure encrypted connection through the PyronixCloud
• All the benefits of the Enforcer two way wireless technology
• New 2.1 software includes: ARC connectivity, additional wireless inputs, Wireless Keypad compatibility and new communication options

Technical Specifications:

Control panel technical characteristics

• Two-way wireless technology : Yes
• Independent areas : 4
• Tamper protection : Front and rear
• User codes and prox tags : 80
• Reporting formats : DIGI-GPRS / DIGI-GPRS+SIM: SIA IP, Contact ID IP, SMS, Push Notification or DIGI-LAN / DIGIWIFI: SIA IP, Contact ID IP, Fast Format IP
• System logs : 750
• Areas : 4

Enforcer two-way wireless technology

• Signal Strength Indicators (SSI) : Yes
• Instant two way device control (ITDC) : Yes
• Pyronix high security two way wireless data encryption protocol (TDE) : Yes
• Pyronix intelligent jamming detection : Yes
• Programmable wireless supervision time : Yes
• 868MHz transceiver FM technology : Yes
• Tranmission method : Fully encrypted rolling code
• Transmission range : 300m in open space

Inputs & outputs

• Input type : Wireless and wired
• Two-way wireless inputs : 64 with 1 EURO-ZEM32-WE
• Onboard wired inputs : 2
• Total inputs : 66
• Outputs on board : 2
• Two-Way Wireless Keypads : Max 4 (v2.1 software & above)
• Output modules : 1
• Maximum outputs : 38
• Two-way wireless keyfobs : 32
• Two-way wireless sirens : 2
• Wired keypads : Max 4 (Including panel)
• Readers and entry control : 3

Communications and modems

• Modem type (included) : None Included
• GPRS modem (optional) : Yes
• LAN modem (optional) : Yes
• WiFi modem (optional) : Yes
• Supports PyronixCloud & HomeControl+ App : Yes
• Formats : SIA IP, Contact ID IP, Fast Format IP
• ARC compatibility : Via CSL Digi Air Pyronix
• Compatible with UDL software : Yes

Environmental and operating features

• Storage temperature : -20°C to +60°C
• Certified operating temperature : -10°C to +40°C
• Nominal operating temperature : -10°C to +40°C
• Physical dimensions (H x W x D) : 220 x 160 x 50mm
• Weight : 1025g

Electrical & battery

• Battery type : NiMH 8 cell 2200mAh rechargeable battery
• Battery voltage : 12.71V (with no mains and battery fully charged)
• Low battery threshold : 8.9V
• Mains supply : 230V AC -15/+10%
• Operating voltage : 90 - 264V AC
• Supply current : 222 - 75 mA

Resistance (wired inputs)

• Normal : 3k7 or 8k3
• Intruder : 8k4 to 10k2
• Tamper : <3k7 or >23k

Certifications and warranty

• Electrical conformity : CE
• EN Certificate : EN50131-1:2006+A1:2009, EN50131-3:2009, EN50131-6:2008, EN50131-5-3:2005+A1:2008, PD6662:2010
• Certification type : Self-certified
• Environmental class : II
• Warranty : 2 years
• Security Grade : Grade 2

(KX10DP-WE) Two Way Wireless 10m Pet Immune PIR Detector

With two way wireless technology this pet tolerant detector is the ideal choice if you have dogs or cats but still want the extra peice of mind that your home is protected. Using the KX intelligent sensor technology the KX10DP-WE can identify the diference between your prized pet and an intruder.

Being wireless there is also minimal disruption when you have your system fitted. With a choice of Keyfobs, proximity tags, using a code or if you chose the HomeControl+ System, your smart phone or tablet to arm and disarm your system using the system couldn't be easier.

Signal Strength Indicator (SSI)
One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.

Blue wave technology
This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises of 2 key components:

The new 3D optics system enables perfect focussing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges.

Powerful software embedded into a microprocessor is used to process the received information from the pyro-electric sensor. The result of this combination is lower infra-red signal noise amplification and therefore better immunity.

10m Pet Immune detector
The detectors intelligent PI (Pet Immune) technology analyses the difference between an intruder and a pet signal, with immunity up to 20kg and 10m coverage range.

Digital Temperature Compensation
When the product is used in a hot environment this technology digitally adjusts the detector’s sensitivity allowing it to maintain its range even when the background room temperature is almost equal to the external body temperature of 32ºC (internal body temperature = 37ºC)

Sealed optics
Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing.

ABS plastics
3mm polished finish, reduces electrostatic interference on the PIR sensor.

Key Features:

• 10m Pet tolerant detection up to 20kg
• Dual element pyro-electric sensor
• Blue wave technology
• Digital temperature compensation
• Sealed optics
• Signal Strength Indicator on the device
• One Push To Learn Button
• 868MHz Transceiver FM technology
• Pyronix High Security Wireless Protocol Encryption
• Complies with EN50131-1

Technical Specifications:

Detectors technical characteristics

• Blue Wave technology : Yes
• Automatic sensitivity : Yes
• Digital temperature compensation : Yes
• Tamper protection : Front and rear
• Signal Strength Indicators (SSI) : Yes

Enforcer two-way wireless technology

• Signal Strength Indicators (SSI) : Yes
• Instant two way device control (ITDC) : Yes
• Pyronix high security two way wireless data encryption protocol (TDE) : Yes
• Pyronix intelligent jamming detection : Yes
• Programmable wireless supervision time : Yes
• 868MHz transceiver FM technology : Yes
• One push to learn : Yes
• Tranmission method : Fully encrypted rolling
• Transmission range : 1.6 km in open space

Optical, lens and detection characteristics

• Maximum range : 10m
• Animal immunity : 24kg
• Detection zones : 52
• Detection planes : 5

Mounting

• Optimum coverage height : 1.8 - 2.4m
• Certified mounting height : 1.24m

Environmental and operating features

• Storage temperature : -20°C to 50°C
• Certified operating temperature : -10°C to 40°C
• Nominal operating temperature : -10°C to 50°C
• Physical dimensions (H x W x D) : 117 x 69 x 50mm

Electrical & battery

• Battery type : 1 x CR123A
• Battery life : up to 2 years
• Battery voltage : 3.0V
• Low battery threshold : 2.5V +/- 5% at 25°C

Certifications and warranty

• Electrical conformity : CE
• EN Certificate : EN50131-5-3: 2005 + A1: 2008, EN50130-4: 1995 + A1: 1998 + A2: 2003, EN61000-6-3: 2007
• Certification type : IMQ
• Certificate number : CA12.01426
• Environmental class : II
• Warranty : 2 years
• Security Grade : Grade 2

(MC1MINI-WE) Two Way Wireless Magnetic Contact - White

With One-Push-To-Learn and no wires to run around the property,the MC1MINI-WE wireless magnetic contact is quick and simple to install.

The high security Enforcer two-way wireless protocol, using 128 bit Pyronix advanced encryption and instant two way device control (ITDC), will give you the peace of mind that your system will remain as secure and reliable as a wired system whilst offering you the flexibility in installation of wireless security products.

Pyronix High Security Wireless Device Encryption
The Two Way wireless protocol has been developed by Pyronix to ensure that the communication between all wireless system components is protected on a very high security level.

One-Push-To-Learn
Assigning wireless devices to the system is made simple and quick by the One-Push-To-Learn feature.
1. Choose an input to learn the device to
2. Remove the plastic insulator between the battery and positive contact and press LEARN button
3. Input learnt
Quick, Simple and Efficient!

Instant two-way Device Control (ITDC)
The ITDC technology enables instant wake up and instant sleep of each device on the system, allowing continuous communication between the control panel and wireless devices while preserving battery power. This technology not only provides installers with total control of each device, but also gives users peace of mind that they have a reliable and secure wireless system.

- Ensuring that all wireless detection devices know when the system is armed and disarmed.
- Ensuring that they are awake as soon as the system is armed.

Signal Strength Indicator (SSI)
One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.

Two-way Wireless Technology
Each wireless device on the Enforcer system, including movement detectors is a transmitter and a receiver. The wireless technology used on the Enforcer system holds a significant advantage over one way and some two way wireless products currently available on the market.

Key Features:

• 1 Reed Switch (side)
• One Push To Learn Button
• Pyronix High Security Wireless Protocol Encryption
• 868MHz Transceiver FM technology
• Complies with EN50131-1

Technical Specifications:

Security and safety sensors technical characteristics

• Magnetic contact : Yes
• Tamper protection : Front and rear
• LED sensor test : Signal, Battery, Alarm, Tamper
• Magnet included : Yes

Enforcer two-way wireless technology

• Signal Strength Indicators (SSI) : Yes
• Instant two way device control (ITDC) : Yes
• Pyronix high security two way wireless data encryption protocol (TDE) : Yes
• Pyronix intelligent jamming detection : Yes
• Programmable wireless supervision time : Yes
• 868MHz transceiver FM technology : Yes
• One push to learn : Yes
• Tranmission method : Fully encrypted rolling
• Transmission range : 1.6m in open space

Environmental and operating features

• Storage temperature : -20°C to 50°C.
• Certified operating temperature : -10°C to 40°C
• Nominal operating temperature : -10°C to 50°C
• Physical dimensions (H x W x D) : 27 x 104 x 25mm, Magnet: 14 x 49 x 16mm

Electrical & battery

• Battery type : 1 x CR123A 3V lithium battery
• Battery life : 2 years
• Threshold : 2.5V +/- 5% at 25°C

Certifications and warranty

• Electrical conformity : CE
• EN Certificate : EN50131-2-6:2008, EN50131-5-3:2005+A1:2008, PD6662:2010
• Certification type : IMQ
• Certificate number : CA12.01482
• Environmental class : II
• Warranty : 2 years
• Security Grade : Grade 2

For more details, please refer with our attached manual.
