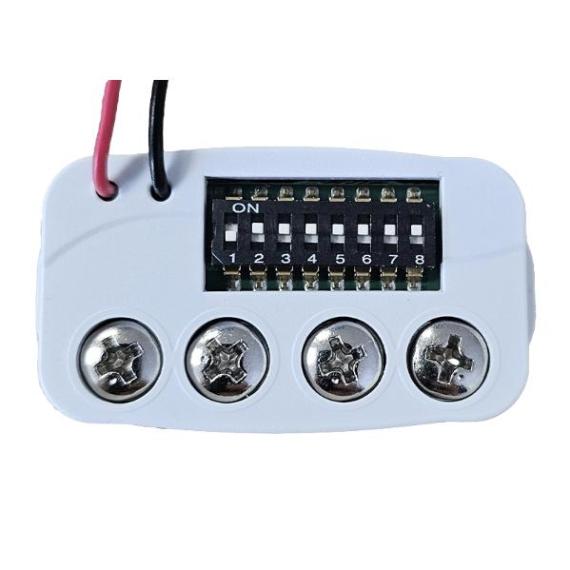

ZETA (SMM/B) Zeta SMM/B | Special Mini Module (White) | Addressable Beam Detector Interface

Model: SMM/B
Trade Only

ZETA (SMM/B) Zeta SMM/B | Special Mini Module (White) | Addressable Beam Detector Interface

Model: SMM/B
Trade Only
Product Description

ZETA, SMM-B, Zeta SMM/B | Special Mini Module (White) | Addressable Beam Detector Interface

The Zeta SMM/B Mini Zone Monitor is an intelligent interface module designed to integrate conventional detectors into addressable fire detection loops. Specifically engineered to work with Zeta’s auto-aligning beam detectors and other conventional devices, this module enables comprehensive monitoring and control of non-addressable equipment within modern addressable fire alarm systems, supporting up to 16 modules per loop for efficient zone management.

Featuring a compact white enclosure suitable for discreet installation, the SMM/B provides polarity-insensitive loop connections for simplified wiring while maintaining consistent positive loop orientation. The module’s zone output delivers up to 13mA capacity, sufficient to power and monitor conventional detectors while providing reliable alarm current detection of 13mA and quiescent current monitoring at 500µA when operating at 24V.

Configuration is straightforward through an 8-segment DIL switch offering 254 unique address settings, allowing precise identification of each monitored zone within the fire detection system. The module operates across a wide voltage range from 17V to 28V on the loop circuit, with zone output voltage maintained between loop voltage minus 1.7V, ensuring stable performance across varying system conditions and cable runs.

Key Features:

  • Compatible with Zeta addressable fire detection loops
  • Controls and monitors conventional detector states
  • Supports up to 16 modules per addressable loop
  • Zone output capacity of 13mA maximum
  • 8-segment DIL switch for address configuration
  • 254 selectable addresses (1-254) for extensive zone coverage
  • Polarity-insensitive loop connections for installation flexibility
  • Dedicated zone output terminals for detector connection
  • Wide operating voltage range from 17V to 28V on loop
  • Zone output voltage of Vloop minus 1.7V
  • Alarm current detection at 13mA
  • Quiescent current monitoring at 500µA at 24V
  • White enclosure for discreet installation
  • Simple two-wire loop connection from panel
  • Clear terminal labelling for Loop L1 and Loop L2 connections
  • Suitable for Zeta auto-aligning beam detectors
  • Compatible with conventional fire detection devices
  • Enables addressable system integration of legacy equipment

Specifications:

  • Maximum Modules Per Loop: 16
  • Zone Output Capacity: 13mA maximum
  • Addressable Range: 1-254 (254 addresses available)
  • Address Configuration: 8-segment DIL switch
  • Power Voltage (Loop): 17V-28V
  • Zone Output Voltage: Vloop – 1.7V
  • Alarm Current: 13mA
  • Quiescent Current: 500µA at 24V
  • Loop Connection Polarity: Insensitive (L1 and L2)
  • Colour: White
  • Terminal Configuration: Loop L1, Loop L1, Loop L2, Loop L2, Zone Output +/-
  • Compatible Systems: Zeta addressable fire detection loops
  • Primary Application: Zeta auto-aligning beam detectors and conventional devices
  • Installation Method: Surface mount

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
